SERVICE

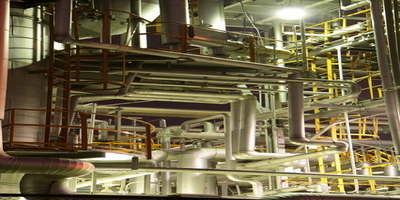

  • Piping Planning & Design We supply our design in all
    kinds (Routing Dwraing,
    Piping GA, Information
    such as Civil/Mechanical,
    Pipe Support design, etc.)
    of Plant.

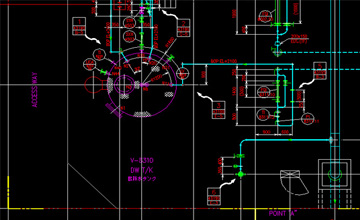

  • 2D CAD 2D CAD Operation.
    We cooperate with an oversea's subcontractor and offer
    High Quality work with
    Cost Merit and Quickly.

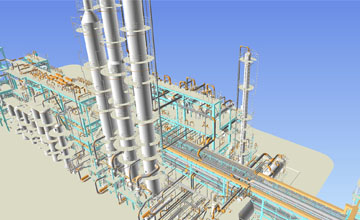

  • 3D Model We utilize Plant 3D Model
    (Eye-CAD) and create
    Isometric Drawing efficiently.
    Also, Smart Plant Model Reviewer
    and Navis Works is applied
    for Model Review and
    for Q.C. work.

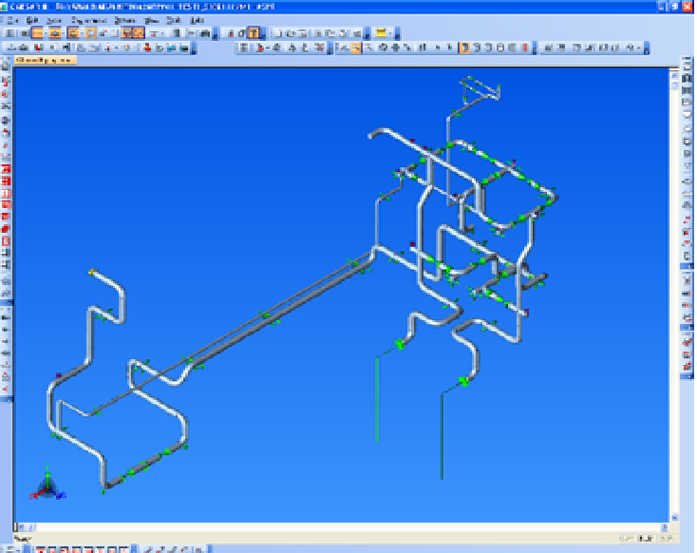

  • Stress Analysis We perform Piping
    Thermal Stress Analysis
    with CAESAR-Ⅱ and
    AUTO-PIPE and provide
    most suitable design.

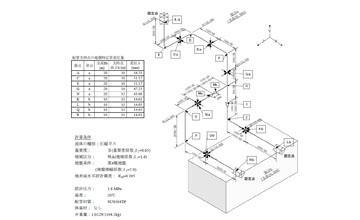

  • Seismic Calculation Gas simplified earthquake-resistant performance evaluation in
    accordance with Japanese regulation.
    FLAP-Ⅱand AUTO-PIPE is
    applied for this Analysis.
  • Site Supervising We provide manpower resource
    for Site Survey, Site Supervising.
    and we create modication
    drawing together with
    design advice.
